GAMA
AGRIPOWER
EY-40TC-AVR
Three-phase, 3000 rpm
40 kVA, 32 kW
Designed to be used at 3000 rpm, the EY-40TC-AVR PTO-driven generator is perfect for emergency situations in agricultural settings or for those with tractors. With a direct connection to the tractor's PTO, it is a practical and safe solution for ensuring constant power.
DADOS PRINCIPAIS
Voltage 400/230V - Three-phase
Input revolutions Multiplier: 430 rpm
80 Hp Tractor
44 kVA / 35.2 kW in Emergency
DADOS TÉCNICOS
DIMENSÕES
LENGTH:
1148 mm
WIDTH:
960 mm
HEIGHT:
1027 mm
WEIGHT:
270 kg
BASE FRAME MOD.:
SMALL

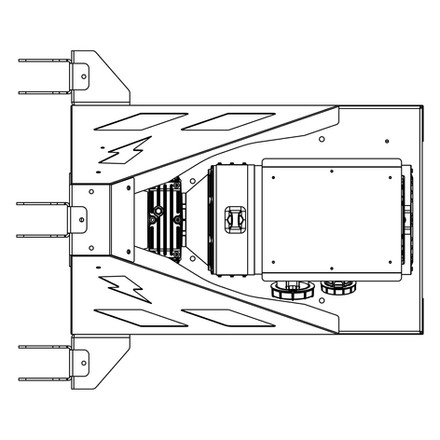

The tractor coupling generator set comes with a sturdy base made of 4 mm thick steel plate, which ensures solidity and strength. To facilitate its installation on category 1-2-3 tractors, it is equipped with three reinforced hooks with a thickness of 6 mm, which ensure safe and stable mounting. Base and hooks are epoxy powder coated in RAL7012 gray for durability and protection against weathering.
The generator side panels are made of 2 mm thick steel plate, also epoxy powder coated in RAL6017 green, giving the unit an aesthetically pleasing yet functional appearance. The compact size and easy portability make this generator a particularly suitable solution for farms and anyone with a tractor, offering a reliable and easily moved power source.
ESPECIFICAÇÕES DO PRODUTO
SWITCHBOARD
The IP44-certified electrical panel is equipped with a variety of outlets and devices designed to ensure monitoring and safety of the system. It is equipped with a (1.)voltmeter, (2.)frequency meter, and (3.)ammeter to monitor electrical parameters, as well as an (4.)hour meter to keep track of usage time. It has a (5.)63A 5-pole CEE 400V outlet at 6hr, protected by a (9.)63A magneto-thermal circuit breaker curve "C" and a (10.)63A main differential circuit breaker, class A, with a sensitivity of 30mA. There is also a (6.)16A 3-pole 230V CEE socket, equipped with a (11.)16A "C" curve circuit breaker for protection. Finally, the switchboard is equipped with a (7.)230V Schuko socket, complete with a (8.)16A circuit breaker for protection.
SWITCHBOARD
The IP44-certified electrical panel is equipped with a variety of outlets and devices designed to ensure monitoring and safety of the system. It is equipped with a (1.)voltmeter, (2.)frequency meter, and (3.)ammeter to monitor electrical parameters, as well as an (4.)hour meter to keep track of usage time. It has a (5.)63A 5-pole CEE 400V outlet at 6hr, protected by a (9.)63A magneto-thermal circuit breaker curve "C" and a (10.)63A main differential circuit breaker, class A, with a sensitivity of 30mA. There is also a (6.)16A 3-pole 230V CEE socket, equipped with a (11.)16A "C" curve circuit breaker for protection. Finally, the switchboard is equipped with a (7.)230V Schuko socket, complete with a (8.)16A circuit breaker for protection.
OPÇÕES APLICÁVEIS
All Energy gimbal generators can be customized to suit your needs and type of use. Discover the optional extras applicable to this model!
CONFIGURAÇÃO STANDARD
All Energy gimbal generators come with standard equipment. Check out the accessories included in this model!
APLICAÇÕES
HISTÓRIA DE CASO
A Energy recomenda
These gensets are designed to power any type of equipment while meeting the power limits of the generator.
The 3000 RPM models are ideal for emergency use, while the 1500 RPM models are suitable for continuous use. If the generator is to operate for extended periods, it is advisable to consult with our technical staff to determine the appropriate power rating.
Energy's shaft-driven generators offer versatile solutions for agriculture.
Agripower generators, operated through a tractor PTO, are ideal for farms. Robust and reliable, they offer efficient and customizable solutions to provide power even in remote locations, with numerous options available to improve efficiency and safety.
