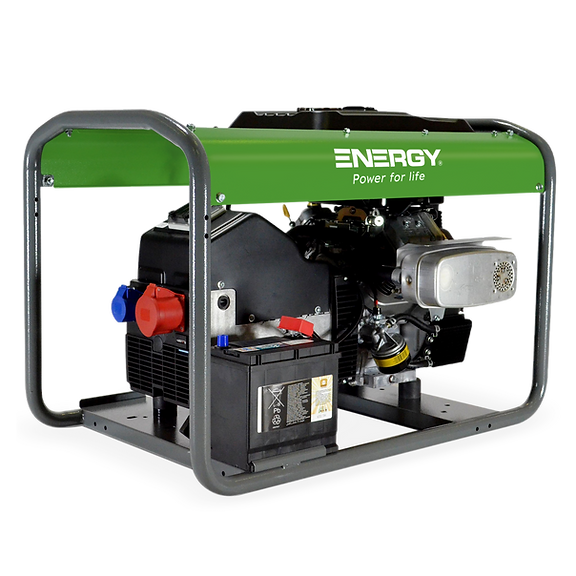

The EY-16TBE three-phase gasoline generator from the ACTIVE line, equipped with an electric starter, is ideal for businesses that need a reliable power source, for home use during power outages, and for DIY projects.
KEY SPECIFICATIONS
Voltage 400/230V - Three-phase
3,000 rpm
Air-cooled
Electric start
B&S 23 HP Engine
TECHNICAL SPECIFICATIONS
MAX POWER:
14 kVA - 11.2 kW
VOLTAGE:
400/230 V
Cosφ:
0,8
FREQUENCY:
50 Hz
CURRENT:
20.2 A
ENGINE:
B&S 23HP
FUEL:
Gasoline
EMISSIONS:
STAGE V
RPM:
3000 rpm
COOLING:
Air
START-UP:
Electrical
DISPLACEMENT:
627 cm³
FUEL CONS. 75%
4.9 L/h
TANK:
15 liters
75% RUNNING TIME:
3 h
OIL CAPACITY:
1.7 liters
ALTERNATOR:
Linz / NSM
DIMENSIONS:
965 x 595 x 655 h
DIMENSIONS
LENGTH
965 mm
WIDTH
595 mm
HEIGHT
655 mm
WEIGHT
135 kg
BASE MOD.:
LARGE
The open-type generator set consists of a sturdy base made of fully welded 35mm-diameter load-bearing tubular steel, with side guard rails made of 2mm-thick sheet metal featuring multiple folds, making the structure suitable for intensive and heavy-duty applications. The entire unit is powder-coated with RAL7012 gray epoxy for the base and RAL6017 green epoxy for the side guard bars.
The inclusion of anti-vibration rubber mounts between the frame and the engine/alternator assembly, along with the metal fuel tank and exhaust, ensures that our product offers robustness and long-term durability even in professional settings, as well as for standard emergency and hobbyist uses.
PRODUCT SPECIFICATIONS
ELECTRICAL PANEL
FOR MODEL WITH AVR
The EY-16TBE model’s electrical panel with AVR is equipped with a 5-pole, 32A CEE 400V outlet and a 3-pole, 32A CEE 230V outlet. The outlets feature a built-in circuit breaker, which provides protection against overloads and short circuits, ensuring safe operation. In addition, they feature a protective circuit breaker that disconnects the circuit in the event of a fault. This model comes standard with instruments such as a voltmeter and an hour meter.
ELECTRICAL PANEL
FOR MODEL WITH COMPOUND
The electrical panel with Compound on the EY-16TBE model is equipped with a 5-pole 400V CEE outlet rated at 32A and a 3-pole 230V CEE outlet rated at 32A. These outlets feature a built-in circuit breaker, which provides protection against overloads and short circuits, ensuring safe operation. In addition, they feature a protective breaker that trips to interrupt the circuit in the event of a fault. As standard, this model is equipped with instrumentation including a voltmeter and an hour meter.
ELECTRICAL PANEL
FOR MODEL WITH COMPOUND
The electrical panel with Compound on the EY-16TBE model is equipped with a 5-pole 400V CEE outlet rated at 32A and a 3-pole 230V CEE outlet rated at 32A. These outlets feature a built-in circuit breaker, which provides protection against overloads and short circuits, ensuring safe operation. In addition, they feature a protective breaker that trips to interrupt the circuit in the event of a fault. As standard, this model is equipped with instrumentation including a voltmeter and an hour meter.
ELECTRICAL PANEL
FOR MODEL WITH AVR
The EY-16TBE model’s electrical panel with AVR is equipped with a 5-pole, 32A CEE 400V outlet and a 3-pole, 32A CEE 230V outlet. The outlets feature a built-in circuit breaker, which provides protection against overloads and short circuits, ensuring safe operation. In addition, they feature a protective circuit breaker that disconnects the circuit in the event of a fault. This model comes standard with instruments such as a voltmeter and an hour meter.
AVAILABLE OPTIONS
All Energy generating sets can be customized based on your needs and intended use. Discover the optional features available for this model!
OPT-ACT-001
Manual transport cart for open version with wheels and handles.
without AVR
with AVR
OPT-ACT-002
Manual transport cart for the sound-attenuated version with two fixed wheels and two swivel wheels.
without AVR
with AVR
OPT-ACT-004
15-liter enlarged fuel tank
without AVR
with AVR
OPT-ACT-005
25-liter enlarged fuel tank.
without AVR
with AVR
OPT-ACT-006
Automatic control panel with automatic mains/generator switching (ATS).
without AVR
with AVR
OPT-ACT-007
Differential or isolator.
without AVR
with AVR
OPT-ACT-008
Hour meter.
without AVR
with AVR
STANDARD CONFIGURATION
All Energy generators come standard with a set of features. Discover the accessories included with this model!
APPLICATIONS
CASE HISTORY
EY-16TBE Gasoline Generator for Construction Site Use in Zagreb
The customer needed a compact and durable three-phase generator to power equipment at their construction site in Zagreb. Energy supplied the EY-16TBE from the ACTIVE line, ideal for construction applications thanks to its ruggedness, ease of use, and continuous operation under demanding working conditions.
ENERGY recommends
These generating sets are suitable for powering any type of equipment, provided it remains within the generator’s power output limits. If the generating set is used to power electronic devices (TVs, computers, inverter welders, etc.), we recommend the optional automatic voltage regulator (AVR). Although the soundproof enclosure is suitable for outdoor use, for any permanent installations, we recommend installing a canopy if the generating set is not placed in a dedicated room. The 3,000 RPM models are suitable for intermittent use. Improper use of the generating set can cause the engine to overheat and lead to wear on various components. Any damage caused by improper use of the generating set will not be covered by the warranty.
Energy’s professional generating sets offer reliable solutions for every power need, from residential to industrial settings.
The professional generating sets in Energy’s ACTIVE line are ideal for preventing power outages and ensuring a continuous power supply, and are perfect for construction sites and hobby projects. With gasoline or diesel engines and air cooling, they deliver optimal performance and durability in demanding conditions. Discover how these generating sets can provide a constant and reliable power supply, wherever you need it.
