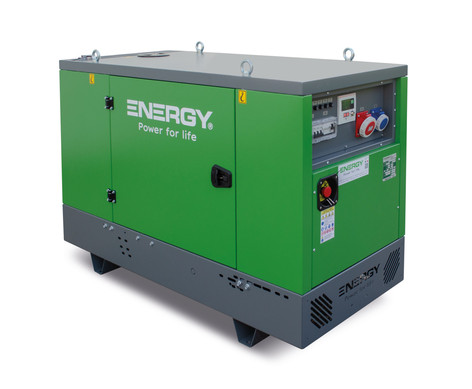

Part of the Industrial Range, the EY-18B Stage 0 model is suitable for civil, agricultural, and industrial sectors, thanks to its ability to provide reliable power for both emergencies and extended use. The open or soundproofed versions, combined with flexible control panels, make it an excellent choice for any application.
KEY SPECIFICATIONS
Voltage 400/230 V
1,500 rpm
Baudouin 4M06G2D0/S
Electric start
NO EMISSIONS
TECHNICAL SPECIFICATIONS
CONTINUOUS POWER:
18 kVA - 14.4 kW
STANDBY POWER:
19.8 kVA - 15.8 kW
CURRENT:
26 A
VOLTAGE:
400/230 V
FREQUENCY:
50 Hz
COSφ:
0,8
ENGINE:
Baudouin 4M06G2D0/S
FUEL:
Diesel
EMISSIONS:
STAGE 0
RPM:
1,500 rpm
COOLING:
Water
FUEL CONS. 75%
5 liters/hour
TANK:
100 liters
ALTERNATOR:
Linz
VOLTAGE REGULATION:
AVR
DIMENSIONS
LENGTH
1800 mm
WIDTH
885 mm
HEIGHT
1335 mm
WEIGHT
745 kg
Self-supporting frame made of 2.5 mm electro-welded pickled steel combined with a 1.5 mm soundproof enclosure to ensure structural strength.
The RAL6017 textured polyester powder coating (70–80 microns) ensures durability and a professional finish. 55-liter internal fuel tank with integrated spill containment basin.
Interior lined with sound-absorbing, water-repellent, and oil-resistant polyurethane compliant with EN13501-1 Class B. Integrated muffler with 35 dB(A) noise reduction.
Two padlockable doors, an electrical panel on the short side with a viewing window, ventilation, and lifting eyes complete the system, along with mounting feet.
PRODUCT SPECIFICATIONS
CONTROL UNIT
LOVATO RGK420SA
The Lovato RGK420SA is a compact control unit with a 110x110 mm front bezel, ideal for stand-alone generator sets. It features 3 front buttons and a 3-position mechanical key (OFF-ON-REM), which can be removed in the OFF and REM positions. The backlit LCD display ensures clear readability, while the 12 or 24 VDC power supply is protected against reverse polarity.
The control unit monitors voltage (L1, L2, L3), frequency, apparent power, current, engine RPM, and battery voltage. It stores the last 40 events and manages maintenance intervals.
It includes alarms for high engine temperature, low oil pressure, low fuel level, voltage or frequency anomalies, failed start, and maximum current exceeded, with automatic engine shutdown for protection.
CONTROL UNIT
COMAP AMF8
The InteliLite AMF8 is a digital control unit designed for the intelligent management of generator sets, both in emergency situations and for continuous operation.
Its clear, backlit 128x64-pixel icon display facilitates interaction and data monitoring.
It operates on a DC power supply ranging from 8 to 36 V and can tolerate power interruptions of up to 100 ms, ensuring operational reliability.
It monitors voltage and current on all phases with 2% accuracy, for both the utility grid and the generator.
It stores recorded events and cumulative operating time, which are useful for technical planning.
It offers advanced protections: alarms for abnormal electrical conditions, incorrect phase sequence, and low fuel, with automatic shutdown of the generator set to prevent damage.
Its modular design allows for the expansion of functionality via plug-in modules.
ELECTRICAL PANEL
MANUAL
Part of the INDUSTRIAL line, the EY-18B model combines a sturdy, IP44-certified painted sheet metal enclosure with a Lovato RGK420SA control unit for continuous monitoring and alarm management. The CEE outlets, paired with circuit breakers, fuses, and an emergency stop button, ensure safe operation even in challenging environments.
ELECTRICAL PANEL
AUTOMATIC
Designed for harsh environments, the EY-18B model from the INDUSTRIAL line features a rugged, painted sheet-metal control box with a hinged door and lock, certified to IP44. The automatic control panel, powered by the ComAp AMF8 control unit, ensures continuous monitoring and advanced alarm systems. The electrical system is supported by a full-power terminal block and a 4P circuit breaker, while fuses, a battery charger, and an emergency stop button round out the safety features.
ELECTRICAL PANEL
MANUAL
Part of the INDUSTRIAL line, the EY-18B model combines a sturdy, IP44-certified painted sheet metal enclosure with a Lovato RGK420SA control unit for continuous monitoring and alarm management. The CEE outlets, paired with circuit breakers, fuses, and an emergency stop button, ensure safe operation even in challenging environments.
CONTROL UNIT
LOVATO RGK420SA
The Lovato RGK420SA is a compact control unit with a 110x110 mm front bezel, ideal for stand-alone generator sets. It features 3 front buttons and a 3-position mechanical key (OFF-ON-REM), which can be removed in the OFF and REM positions. The backlit LCD display ensures clear readability, while the 12 or 24 VDC power supply is protected against reverse polarity.
The control unit monitors voltage (L1, L2, L3), frequency, apparent power, current, engine RPM, and battery voltage. It stores the last 40 events and manages maintenance intervals.
It includes alarms for high engine temperature, low oil pressure, low fuel level, voltage or frequency anomalies, failed start, and maximum current exceeded, with automatic engine shutdown for protection.
ELECTRICAL PANEL
AUTOMATIC
Designed for harsh environments, the EY-18B model from the INDUSTRIAL line features a rugged, painted sheet-metal control box with a hinged door and lock, certified to IP44. The automatic control panel, powered by the ComAp AMF8 control unit, ensures continuous monitoring and advanced alarm systems. The electrical system is supported by a full-power terminal block and a 4P circuit breaker, while fuses, a battery charger, and an emergency stop button round out the safety features.
CONTROL UNIT
COMAP AMF8
The InteliLite AMF8 is a digital control unit designed for the intelligent management of generator sets, both in emergency situations and for continuous operation.
Its clear, backlit 128x64-pixel icon display facilitates interaction and data monitoring.
It operates on a DC power supply ranging from 8 to 36 V and can tolerate power interruptions of up to 100 ms, ensuring operational reliability.
It monitors voltage and current on all phases with 2% accuracy, for both the utility grid and the generator.
It stores recorded events and cumulative operating time, which are useful for technical planning.
It offers advanced protections: alarms for abnormal electrical conditions, incorrect phase sequence, and low fuel, with automatic shutdown of the generator set to prevent damage.
Its modular design allows for the expansion of functionality via plug-in modules.
AVAILABLE OPTIONS
All Energy generating sets can be customized based on your needs and intended use. Discover the optional features available for this model!
STANDARD CONFIGURATION
All Energy generating sets come standard with a set of features. Discover the accessories included with this model!
Access hatch for refrigerant fluid filling.
Internal diesel refueling.
Support feet with holes for securing to the ground.
Lifting hooks.
Lockable on all doors.
Diesel spill containment tray.
APPLICATIONS
CASE HISTORY
ENERGY recommends
These generating sets are designed to power any type of equipment, within the generator’s power limits.
Although the soundproof enclosure is suitable for outdoor use, for fixed installations, we recommend installing a canopy if the generating set is not placed in a dedicated room.
The 1,500 rpm models are suitable for continuous operation. For extended use lasting several days or more, we recommend consulting our technical staff to ensure you select the appropriate power rating.
Energy’s water-cooled industrial generating sets, operating at 1,500 rpm, offer versatile and professional power solutions.
The INDUSTRIAL range of industrial diesel generating sets provides reliable power for industrial, civil, and agricultural sectors. With power ratings ranging from 5 to 2,800 kVA, these generating sets are customizable, available in open or sound-attenuated versions, and can be equipped with dollies for greater mobility, ensuring operational continuity even under challenging conditions.
