The EY-5MDE-S single-phase, diesel-powered, sound-insulated generator from the ACTIVE range is ideal for hobby projects, home use during power outages, and for businesses requiring a reliable power source. Its sound-insulated enclosure makes it suitable for use in areas where noise control is essential.
KEY SPECIFICATIONS
Voltage 230V - Single-phase
3,000 rpm
Air-cooled
Electric start
Yanmar L70 Engine
TECHNICAL SPECIFICATIONS
MAX POWER:
4 kVA - 3.6 kW
VOLTAGE:
230 V
Cosφ:
0,9
FREQUENCY:
50 Hz
AMPERAGE:
17.4 A
ENGINE:
Yanmar L70
FUEL:
Diesel
EMISSIONS:
STAGE V
RPM:
3,000 rpm
COOLING:
Air
START-UP:
Electric
DISPLACEMENT:
320 cm³
FUEL CONS. 75%
1 L/h
TANK:
30 liters
75% RUNNING TIME:
30 h
OIL CAPACITY:
1 L
ALTERNATOR:
Linz
DIMENSIONS:
1055 x 600 x 899 (h)
DIMENSIONS
LENGTH
1055 mm
WIDTH
600 mm
HEIGHT
899 mm
WEIGHT
190 kg
BASE MOD.:
S6.11
The sound-insulated version of the generator set consists of a 2.5mm-thick sheet metal base that is fully welded and coated with epoxy powder paint, and a sound-insulated enclosure made of 1.5mm-thick sheet metal painted with RAL6017 green epoxy powder paint, while the roof, base, and electrical panel are painted RAL7012 gray. The certified central lifting hook, the four maintenance doors on the long sides with dedicated locks, the 30-liter internal fuel tank, the compact dimensions, and a fully configurable electrical panel make this version the ideal solution both for professionals who need a compact generator set and for end users requiring emergency power for private residences.
PRODUCT SPECIFICATIONS
ELECTRICAL PANEL
FOR MODELS WITH AND WITHOUT AVR

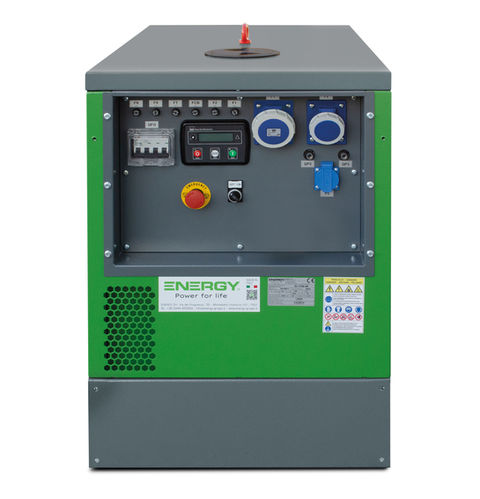

The electrical panel with and without AVR on the EY-5MDE-S model is equipped with two 3-pole 230V CEE outlets—one rated at 32A and one at 16A—and one 230V Schuko outlet. These outlets are equipped with an integrated circuit breaker and a protective breaker that trips to interrupt the circuit in the event of a fault. As standard, this model is equipped with protective fuses, an emergency stop button, a Deep Sea DSE3110 control unit, an on/off switch for the control unit, and instrumentation including a voltmeter, hour meter, frequency meter, battery voltage gauge, and RPM gauge. In addition, the following alarms are indicated: failure to start/stop—low oil pressure—high engine temperature—high/low RPM—low fuel level—high/low voltage and frequency—high/low battery voltage.
ELECTRICAL PANEL
FOR MODELS WITH AND WITHOUT AVR
The electrical panel with and without AVR on the EY-5MDE-S model is equipped with two 3-pole 230V CEE outlets—one rated at 32A and one at 16A—and one 230V Schuko outlet. These outlets are equipped with an integrated circuit breaker and a protective breaker that trips to interrupt the circuit in the event of a fault. As standard, this model is equipped with protective fuses, an emergency stop button, a Deep Sea DSE3110 control unit, an on/off switch for the control unit, and instrumentation including a voltmeter, hour meter, frequency meter, battery voltage gauge, and RPM gauge. In addition, the following alarms are indicated: failure to start/stop—low oil pressure—high engine temperature—high/low RPM—low fuel level—high/low voltage and frequency—high/low battery voltage.
AVAILABLE OPTIONS
All Energy generating sets can be customized based on your needs and intended use. Discover the optional features available for this model!
OPT-ACT-001
Manual transport cart for open version with wheels and handles.
without AVR
with AVR
OPT-ACT-003
Manual transport cart for the sound-attenuated version with wheels and handles.
without AVR
with AVR
OPT-ACT-006
Automatic control panel with automatic mains/generator switching (ATS) supplied in an external enclosure.
without AVR
with AVR
OPT-ACT-007
Differential or isolator.
without AVR
with AVR
OPT-ACT-009
MAN/AUTO Kit.
without AVR
with AVR
OPT-ACT-010
Load switch.
without AVR
with AVR
STANDARD CONFIGURATION
All Energy generators come standard with a set of features. Discover the accessories included with this model!
APPLICATIONS
CASE HISTORY
ENERGY recommends
These generating sets are suitable for powering any type of equipment, provided it remains within the generator’s power output limits. If the generating set is used to power electronic devices (TVs, computers, inverter welders, etc.), we recommend the optional automatic voltage regulator (AVR). Although the soundproof enclosure is suitable for outdoor use, for any permanent installations, we recommend installing a canopy if the generating set is not placed in a dedicated room. The 3,000 RPM models are suitable for intermittent use. Improper use of the generating set can cause the engine to overheat and lead to wear on various components. Any damage caused by improper use of the generating set will not be covered by the warranty.
Energy’s professional generating sets offer reliable solutions for every power need, from residential to industrial settings.
The professional generating sets in Energy’s ACTIVE line are ideal for preventing power outages and ensuring a continuous power supply, and are perfect for construction sites and hobby projects. With gasoline or diesel engines and air cooling, they deliver optimal performance and durability in demanding conditions. Discover how these generating sets can provide a constant and reliable power supply, wherever you need it.
