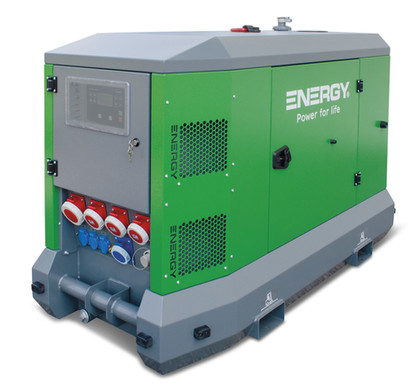

The EY-R13Y STAGE V diesel generator from the RENTAL range is designed to provide reliable and stable power on construction sites and for temporary applications. Specifically engineered for rental use, it combines a robust build with ease of maneuverability, thanks to its compact and durable design. Compliant with STAGE V emission standards, the EY-R13Y minimizes its environmental impact. Equipped with an efficient cooling system and built-in protections, it guarantees high performance even in demanding environments. Ideal for those who require power and flexibility, it ensures constant and reliable support, meeting the needs of the most demanding construction sites.
KEY SPECIFICATIONS
Voltage 400V + N - Three-phase
1,500 rpm
Yanmar 3TNV88F Engine
Electric start
EU STAGE V Emissions
TECHNICAL SPECIFICATIONS
CONTINUOUS POWER:
13 kVA - 10.4 kW
STANDBY POWER:
14.3 kVA - 11.4 kW
NOISE LEVEL:
68 dB(A) at 7 m ± 3
RPM:
1,500 rpm
FREQUENCY:
50 Hz
VOLTAGE:
400 V + N
AMPERAGE:
18.8 A
ENGINE:
Yanmar 3TNV88F-UGB
EMISSIONS:
EU STAGE V
COOLING:
Water
DISPLACEMENT:
1,642 cc
FUEL:
Diesel
FUEL CONS. 75%
3 liters/hour
TANK:
130 liters
ALTERNATOR:
Linz
TYPE:
Brushless
VOLTAGE REGULATION:
AVR
DIMENSIONS
LENGTH
1875 mm
WIDTH
880 mm
HEIGHT
1170 mm
WEIGHT
N/A

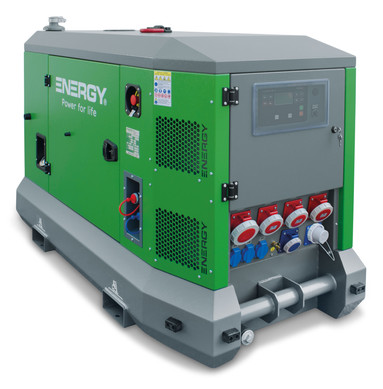

Outdoor soundproof enclosure made of steel and coated with epoxy powder paint to ensure optimal corrosion resistance. The enclosure is RAL6017 green, while the roof, base, and front panel are RAL7012 gray. It is equipped with sound-absorbing material that provides high acoustic insulation. Access for routine and non-routine maintenance is facilitated by sturdy, lockable access doors. Inside the enclosure is a residential-grade muffler with a noise reduction of 35 dB(A). The central lifting hook is certified. Fresh air intake and hot air exhaust occur vertically through special sound-insulating ducts.
PRODUCT SPECIFICATIONS
ELECTRICAL PANEL
AUTOMATIC

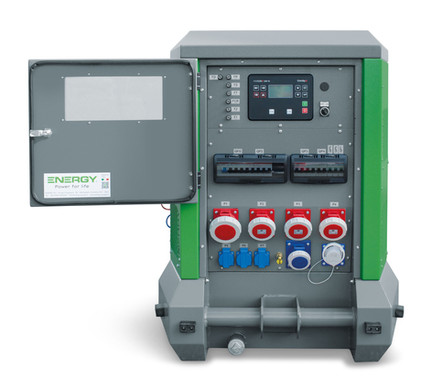

The EY-R13Y model’s electrical panel offers safe and advanced control. At the heart of the system is the ComAp AMF25 control unit with an ON/OFF switch, protected by a door with a viewing window to ensure immediate visibility. The equipment includes a built-in battery charger, a periodic test function to monitor the system’s status, and connections for easy connection to the power grid.
Housed in a durable IP44-rated enclosure, the panel is designed to withstand external elements. The configuration includes a set of 8 customizable outlets: 4 5-pole 400V outlets, one 3-pole 230V 16A outlet, and 3 230V Schuko outlets, each equipped with thermal-magnetic protection and a main ground fault circuit interrupter (GFCI).
Additional features include a USB port and a 230V 16A CEE input plug to power the battery and the heater, if present. Circuit breakers protect the auxiliary circuits, while the emergency stop button and grounding connection ensure maximum safety.
An electronic float switch monitors the fuel level, and the alarm system signals voltage and frequency fluctuations, low oil pressure, high water temperature, alternator failures, and low fuel level. Finally, there are digital gauges for oil pressure and engine temperature.
ELECTRICAL PANEL
AUTOMATIC
The EY-R13Y model’s electrical panel offers safe and advanced control. At the heart of the system is the ComAp AMF25 control unit with an ON/OFF switch, protected by a door with a viewing window to ensure immediate visibility. The equipment includes a built-in battery charger, a periodic test function to monitor the system’s status, and connections for easy connection to the power grid.
Housed in a durable IP44-rated enclosure, the panel is designed to withstand external elements. The configuration includes a set of 8 customizable outlets: 4 5-pole 400V outlets, one 3-pole 230V 16A outlet, and 3 230V Schuko outlets, each equipped with thermal-magnetic protection and a main ground fault circuit interrupter (GFCI).
Additional features include a USB port and a 230V 16A CEE input plug to power the battery and the heater, if present. Circuit breakers protect the auxiliary circuits, while the emergency stop button and grounding connection ensure maximum safety.
An electronic float switch monitors the fuel level, and the alarm system signals voltage and frequency fluctuations, low oil pressure, high water temperature, alternator failures, and low fuel level. Finally, there are digital gauges for oil pressure and engine temperature.
AVAILABLE OPTIONS
All Energy generating sets can be customized based on your needs and intended use. Discover the optional features available for this model!
STANDARD CONFIGURATION
All Energy generating sets come standard with a set of features. Discover the accessories included with this model!
External diesel fuel filler with lockable cap.
Three-way valve for connecting the fuel tank’s supply and return lines.
Diesel drain plug, 50 mm diameter.
Handling with anti-tip forklift forks.
Shock-absorbing rubber pads positioned to protect the base.
Battery Disconnector.
Access hatch for refrigerant fluid filling.
Shock-resistant door stop.
Document holder.
Radiator drain tank.
Side doors for inspection and maintenance, made of 2mm-thick sheet metal with Class 1-certified sound-absorbing material.
Solid 3mm-thick sheet metal base, fully welded with a closed bottom to collect liquid leaks. Tubular frame welded to the short sides for towing the generator to the job site.
