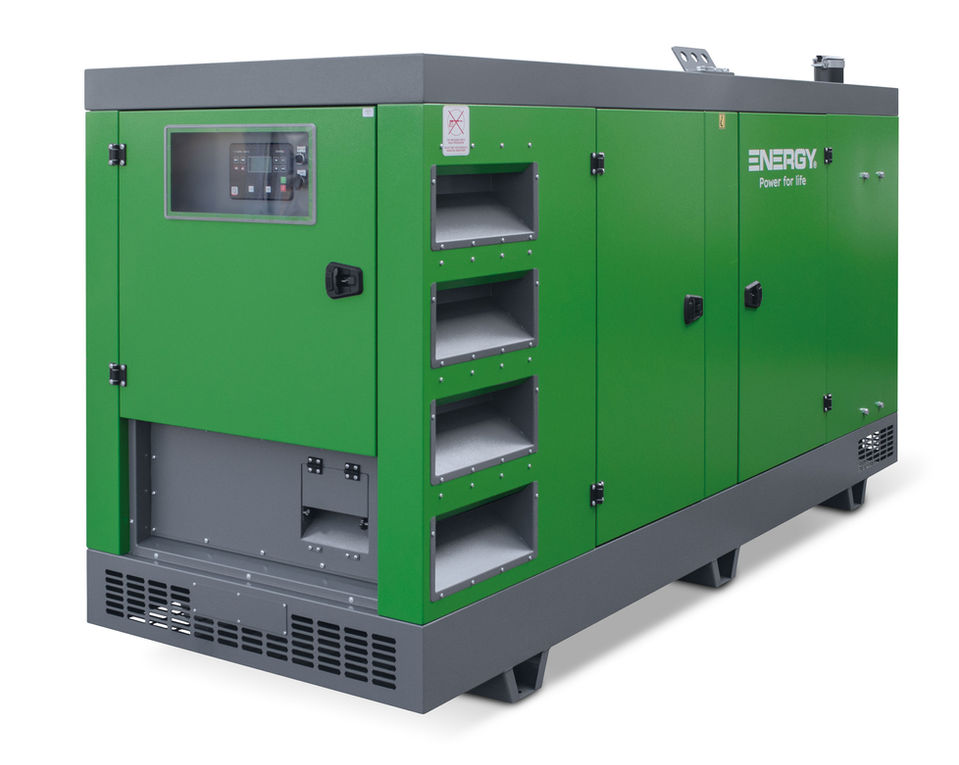

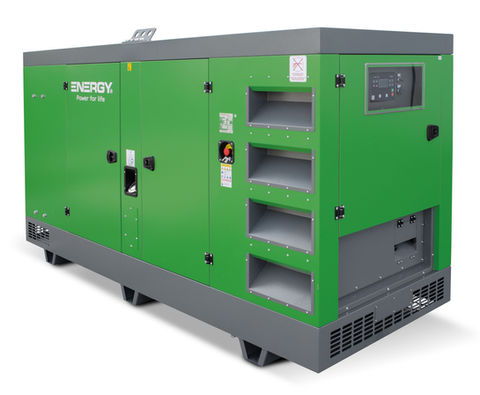

Part of the Industrial Range, the EY-200F Stage 0 is the perfect choice for those seeking reliability and high performance, ideal for emergencies or long-term operations. Available in an open or soundproofed version with an automatic control panel, it meets the needs of the agricultural, civil, and industrial sectors.
KEY SPECIFICATIONS
Voltage 400/230 V
1,500 rpm
FPT NEF67 TM7
Electric start
NO EMISSIONS
TECHNICAL SPECIFICATIONS
CONTINUOUS POWER:
200 kVA - 160 kW
STANDBY POWER:
220 kVA - 176 kW
AMPERAGE:
289 A
VOLTAGE:
400/230 V
FREQUENCY:
50 Hz
COSφ:
0,8
ENGINE:
FPT NEF67 TM7
FUEL:
Diesel
EMISSIONS:
STAGE 0
RPM:
1500 rpm
COOLING:
Water
FUEL CONS. 75%
35 liters/hour
TANK:
250 liters
ALTERNATOR:
Linz PRO28S B/4
VOLTAGE REGULATION:
AVR
DIMENSIONS
LENGTH
3070 mm
WIDTH
1134 mm
HEIGHT
1,762 mm
WEIGHT
2,130 kg
Weather-resistant RAL6017 polyester powder coating (70–80 microns). 250-liter fuel tank with spill containment basin.
Sound-absorbing polyurethane interior lining compliant with EN13501-1 Class B. Integrated muffler with noise reduction of up to 35 dB(A).
Four padlockable doors, an electrical panel with a viewing window on the short side, ventilation, two eye bolts, and mounting feet complete the configuration.
PRODUCT SPECIFICATIONS
CONTROL UNIT
COMAP AMF8
Designed for standby and prime power applications, the InteliLite AMF8 control unit is a compact and comprehensive solution for the automatic control of generators. Its 128x64-pixel backlit display makes it easy to read all key parameters.
It operates at voltages ranging from 8 to 36 VDC and also provides protection against voltage sags lasting up to 100 milliseconds.
Voltage and current are monitored on all phases with 2% accuracy, on both the utility grid and generator sides.
Event data and operating hours are saved to facilitate maintenance planning.
The control unit incorporates protection systems for a wide range of electrical faults, including low fuel level, triggering automatic shutdown when necessary.
The ability to add modules makes it highly customizable for any industrial setting.
ELECTRICAL PANEL
AUTOMATIC
Designed for the demanding INDUSTRIAL line, the EY-200F guarantees durability and reliable performance even under challenging conditions. The IP44-rated automatic steel control panel features a door with a viewing window and a lock to enhance security. The ComAp AMF8 control unit provides advanced control, while the terminal block and 4-pole circuit breaker ensure safe operation. The system is completed by a battery charger and an emergency stop button.
ELECTRICAL PANEL
AUTOMATIC
Designed for the demanding INDUSTRIAL line, the EY-200F guarantees durability and reliable performance even under challenging conditions. The IP44-rated automatic steel control panel features a door with a viewing window and a lock to enhance security. The ComAp AMF8 control unit provides advanced control, while the terminal block and 4-pole circuit breaker ensure safe operation. The system is completed by a battery charger and an emergency stop button.
CONTROL UNIT
COMAP AMF8
Designed for standby and prime power applications, the InteliLite AMF8 control unit is a compact and comprehensive solution for the automatic control of generators. Its 128x64-pixel backlit display makes it easy to read all key parameters.
It operates at voltages ranging from 8 to 36 VDC and also provides protection against voltage sags lasting up to 100 milliseconds.
Voltage and current are monitored on all phases with 2% accuracy, on both the utility grid and generator sides.
Event data and operating hours are saved to facilitate maintenance planning.
The control unit incorporates protection systems for a wide range of electrical faults, including low fuel level, triggering automatic shutdown when necessary.
The ability to add modules makes it highly customizable for any industrial setting.
AVAILABLE OPTIONS
All Energy generating sets can be customized based on your needs and intended use. Discover the optional features available for this model!
STANDARD CONFIGURATION
All Energy generating sets come standard with a set of features. Discover the accessories included with this model!
Access hatch for refrigerant fluid filling.
Internal diesel refueling.
Support feet with holes for securing to the ground.
Lifting hooks.
Lockable on all doors.
Diesel spill containment tray.
APPLICATIONS
CASE HISTORY
ENERGY recommends
These generating sets are designed to power any type of equipment, within the generator’s power limits.
Although the soundproof enclosure is suitable for outdoor use, for fixed installations, we recommend installing a canopy if the generating set is not placed in a dedicated room.
The 1,500 rpm models are suitable for continuous operation. For extended use lasting several days or more, we recommend consulting our technical staff to ensure you select the appropriate power rating.
Energy’s water-cooled industrial generating sets, operating at 1,500 rpm, offer versatile and professional power solutions.
The INDUSTRIAL range of industrial diesel generating sets provides reliable power for industrial, civil, and agricultural sectors. With power ratings ranging from 5 to 2,800 kVA, these generating sets are customizable, available in open or sound-attenuated versions, and can be equipped with dollies for greater mobility, ensuring operational continuity even under challenging conditions.
